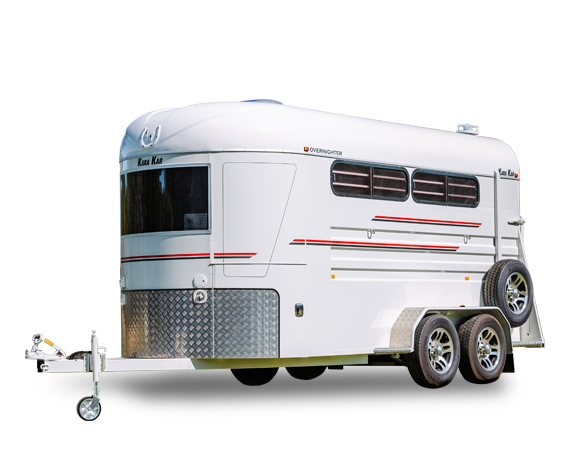

Overnighter
All images for illustration purposes only, may include some optional extras
2 Horse Overnighter 360
The Overnighter 360 comes with a host of modern kitchen appliances with additional features as standard to make your over night camp a breeze.
- Tare 18400Kg | GTM 2800Kg | ATM 3100Kg
- Internal Height 7’6” | Internal Width 6’3” | Internal Length 13’6
- Bay Length – 2450mm | Bay Width – 680mm
Specifications
2 Horse Overnighter 360
- Super Gal Steel
- Full fibreglass roof
- Rubber on floor in horse area & tailgate
- 4 Wheel 10” electric brakes with breakaway
- 50mm square 4” drop axles with parallel bearings
- 5 New 195 light truck tyres
- Removable dividers, head dividers & slam latches
- Large polycarbonate front window
- Low camber Australian made slipper springs
- Australian made easy lift swing up jockey wheel
- Spring loaded tailgate latches
- 2 x Gas strut operated tailgate with rear step
- Drain holes at rear
- Full multi volt LED lights
- Full height personal access door
- Aluminium bump guard on tailgate
- 600mm checker plate stone guard around front
- 950mm front kick-boards
- 950mm rear kick-boards
- White colourbond on tailgate
- Rug rack
- Caravan door
- Striping: your colour choice
- Checker-plate over mudguards
- Filled in checker plate draw-bar
- Extra stripe & scroll
- 2 pac automotive white paint
- Checker plate mudguard steps
- 14” 6 stud Alloy wheels
- 2 Pop up vents
- 2 Rotary vents
- 3 lockable sliding windows with screens
- Full padded divider system
- Pinch mould on mudguards & roof
- Lined & insulated fibreglass roof
- 1 x 240v internal double power point & circuit breaker
- 1 x 240v external power point
- 240v to 12v charge unit
- 12v deep cycle battery and box
- 12v porch light
- Overhead cupboard in front
- 108lt 12v/240v 2way fridge
- Stainless steel sink, pressured cold water
- 1 x 86ltr water tank, ext tap, battery & pump
- Cutlery draw
- Rear lift door
- 1 Door tack-room
- 3 x 12v LED internal lights
- Caravan style roof vent with blind
- 12v TV socket with aerial wiring harness
Tare 1840Kg
GTM 2800Kg
ATM 3100kg
Internal Height 7’3
Internal Width 6’3
Internal Length 13’6
Bay Length – 2450mm
Bay Width – 680mm
Optional Extras
2 Horse Overnighter 460
Next in the Overnighter series the 460 comes with a host of modern kitchen appliances with additional features including a swing-dividing wall, which can separate the horse area from the cabin.
- Tare 1860Kg | GTM 2800Kg | ATM 3100Kg
- Internal Height 7’3” | Internal Width 6’3” | Internal Length 14’6
- Bay Length – 2450mm | Bay Width – 680mm
Specifications
2 Horse Overnighter 460
- Super Gal Steel
- Full fibreglass roof
- Rubber on floor in horse area & tailgate
- 4 Wheel 10” electric brakes with breakaway
- 50mm square 4” drop axles with parallel bearings
- 5 New 195 light truck tyres
- Removable dividers, head dividers & slam latches
- Large polycarbonate front window
- Low camber Australian made slipper springs
- Australian made easy lift swing up jockey wheel
- Spring loaded tailgate latches
- 2 x Gas strut operated tailgate with rear step
- Drain holes at rear
- Full multi volt LED lights
- Aluminium bump guard on tailgate
- 600mm checker plate stone guard around front
- 950mm front kick-boards
- 950mm rear kick-boards
- White colourbond on tailgate
- Open rug rack
- Lockable flush mounted door handle
- Striping: your colour choice
- Checker-plate over mudguards
- Filled in checker plate draw-bar
- Extra stripe & scroll
- Checker plate mudguard steps
- 14” 6 stud Alloy wheels
- 2 Pop up vents
- 2 Rotary vents
- 2 pac automotive white paint
- 3 lockable sliding windows with screens
- Full padded divider system
- Pinch mould on mudguards & roof
- Lined & insulated fibreglass roof
- 1 x 240v internal double power point & circuit breaker
- 1 x 240v external power point
- 240v to 12v charge unit
- 12v deep cycle battery and box
- 12v porch light
- Overhead cupboard in front
- Stainless steel sink, pressured cold water
- 1 x 86lt water tanks, ext tap, battery & pump
- Cutlery draw
- Rear lift door
- 1 Door tack-room
- 3 x 12v LED internal lights
- Caravan style roof vent with blind
- Caravan style door
- 108lt 12v/240v 2way fridge
Extra features above 360 model
- Microwave
- Swing divider wall with passenger access door
- Vinyl on floor
- Full length hanging robe
- 14’6” Internal length
- 12v TV socket with aerial wiring harness
Tare 1860Kg
GTM 2800Kg
ATM 3100kg
Internal Height 7’3
Internal Width 6’3
Internal Length 14’6
Bay Length – 2450mm
Bay Width – 680mm
Optional Extras
2 Horse Showman
The ultimate 2 Horse Angle Load! The Showman offers the features of a Gooseneck – a fully fitted kitchen, sleeping and dining facilities and shower within the compact convenience of a Drawbar trailer.
- Tare 1900Kg | GTM 3500Kg | ATM 3500Kg
- Internal Height 7’3” | Internal Width 6’3” | Internal Length 17’
- Bay Length – 2450mm | Bay Width – 680mm
Specifications
2 Horse Standard Showman
- Super Gal Steel
- Full fibreglass roof
- Rubber on floor in horse area & tailgate
- 4 Wheel 12” electric brakes with breakaway
- 50mm square 3” drop axles
- Removable dividers, head dividers & slam latches
- Large polycarbonate front window
- Low Camber Australian made slipper springs
- Australian made easy lift swing up jockey wheel
- Spring loaded tailgate latches
- 2 x Gas strut operated tailgate with rear step
- Drain holes at rear
- Full multi volt LED lights
- Aluminium bump guard on tailgate
- 600mm checker plate stone guard around front
- 950mm front kick-boards front & rear
- White colourbond on tailgate
- Open rug rack
- Lockable flush mounted door handle
- Striping: your colour choice
- Checker-plate over mudguards
- Filled in checker plate draw-bar
- Extra stripe & scroll
- Checker plate mudguard steps
- 2 Interior lights in horse area
- 2 Pop up vents
- 2 Rotary vents
- 3 lockable sliding windows with screens
- Full padded divider system
- Pinch mould on mudguards & roof
- 2 pac automotive white paint
- Lined & insulated fibreglass roof
- 1 x 240v internal double power point & circuit breaker
- 1 x 240v external power point
- 240v to 12v charge unit
- 12v deep cycle battery and box
- 12V porch light
- Overhead cupboard in front
- 108lt 12v/240v 2way fridge
- Stainless steel sink
- 1 x 86lt water tank, ext tap, battery & pump
- Cutlery draw
- Rear lift door
- 2 x 12v LED internal lights in camper
- Swing divider wall with passenger access door
- Roof vent with fly-screen & blind
- Vinyl on floor
- Caravan style door
- Lined & insulated ply walls
- Kitchen window with blind & screen
- Overhead kitchen cupboards
- Curved lounge with fold down table/bed & storage
- 16” 6 stud Alloy wheels
- 240v hot-water shower with mains pressure hook up
- Cold/hot water flick mixer at sink
- 3 Saddle swing out tack box
- Light weight timber kitchen
- 19mm Composite floor & tailgate
Tare 1900Kg
GTM 3500Kg
ATM 3500kg
Internal Height 7’3
Internal Width 6’3
Internal Length 17’
Bay Length – 2450mm
Bay Width – 680mm
Optional Extras
3 Horse Overnighter 700
The Overnighter 700 comes with a host of modern kitchen appliances and cupboards plus additional features as standard to make your over night camp a breeze.
- Tare 2020Kg | GTM 3500Kg | ATM 3500Kg
- Internal Height 7’3” | Internal Width 6’3” | Internal Length 16’9
- Bay Length – 2450mm | Bay Width – 680mm
Specifications
3 Horse Overnighter 700
- Super Gal Steel
- 19mm Composite floor and tailgate
- Full fibreglass roof
- Rubber on floor in horse area & tailgate
- 4 Wheel 12” electric brakes with breakaway
- 50mm square 3” drop axles
- 5 New 225 light truck tyres
- Removable dividers, head dividers & slam latches
- Large polycarbonate front window
- Low Camber Australian made slipper springs
- Australian made easy lift swing up jockey wheel
- Spring loaded tailgate latches
- 2 x Gas strut operated tailgate with rear step
- Drain holes at rear
- Full multi volt LED lights
- Full height personal access door
- Aluminium bump guard on tailgate
- 600mm checker plate stone guard around front
- 950mm front kick-boards
- 950mm rear kick-boards
- White colourbond on tailgate
- Open rug rack
- Lockable flush mounted door handle on tack box
- Striping: your colour choice
- Checker-plate over mudguards
- Filled in checker plate draw-bar
- Extra stripe & scroll
- Checker plate mudguard steps
- 2 pac automotive white paint
- 16” 6 stud Alloy wheels
- 2 Pop up vents
- 2 Rotary vents
- 3 lockable sliding windows with screens
- Rear lift door
- Full padded divider system
- Pinch mould on mudguards & roof
- Lined & insulated fibreglass roof
- 1 x 240v internal double power point & circuit breaker
- 1 x 240v external power point
- 240v to 12v charge unit
- 12v deep cycle battery and box
- 12v porch light
- Overhead cupboards in front
- 108lt 12v/240v 2way fridge
- Microwave
- Stainless steel sink, pressured cold water
- 1 x 86lt water tank, ext tap, battery & pump
- Cutlery draw
- 2 Door tack-room
- 3 x 12v LED internal lights
- Caravan style door
- Caravan style roof vent with blind
- 12v TV socket with aerial wiring harness
Tare 2020Kg
GTM 3500Kg
ATM 3500kg
Internal Height 7’3
Internal Width 6’3
Internal Length 16’9
Bay Length – 2450mm
Bay Width – 680mm
Optional Extras
3 Horse Overnighter 800
The largest of the Overnighter series the 800 comes with a host of modern kitchen appliances with additional features including a swing-dividing wall, which can separate the horse area from the cabin.
- Tare 2040Kg | GTM 3500Kg | ATM 3500Kg
- Internal Height 7’3” | Internal Width 6’3” | Internal Length 17’3
- Bay Length – 2450mm | Bay Width – 680mm
Specifications
3 Horse Overnighter 800
- Super Gal Steel
- 19mm Composite floor and tailgate
- Full fibreglass roof
- Rubber on floor in horse area & tailgate
- 4 Wheel 12” electric brakes with breakaway
- 50mm square 3” drop axles
- 5 New 225 light truck tyres
- Removable dividers, head dividers & slam latches
- Large polycarbonate front window
- Low Camber Australian made slipper springs
- Australian made easy lift swing up jockey wheel
- Spring loaded tailgate latches
- 2 x Gas strut operated tailgate with rear step
- Drain holes at rear
- Full multi volt LED lights
- Full height personal access door
- Aluminium bump guard on tailgate
- 600mm checker plate stone guard around front
- 950mm front kick-boards
- 950mm rear kick-boards
- White colourbond on tailgate
- Open rug rack
- Lockable flush mounted door handle
- Striping: your colour choice
- Checker-plate over mudguards
- Filled in checker plate draw-bar
- Extra stripe & scroll
- Checker plate mudguard steps
- 16” 6 stud Alloy wheels
- 2 Pop up vents
- 12v TV socket with aerial wiring harness
- 2 Rotary vents
- 2 pac automotive white paint
- 3 lockable sliding windows with screens
- Rear lift door
- Full padded divider system
- Pinch mould on mudguards & roof
- Lined & insulated fibreglass roof
- 1 x 240v internal double power point & circuit breaker
- 1 x 240v external power point
- 3 x 12v internal lights
- 240v to 12v charge unit
- 12v deep cycle battery and box
- Roof vent with fly-screen & blind
- 12v porch light
- Overhead cupboard in front
- Stainless steel sink, pressured cold water
- 1 x 86lt water tanks, ext tap, battery & pump
- Cutlery draw
- Caravan style door
- 108lt 12v/240v 2way fridge
- Microwave
Extra Features above 700 model
- 1 Door tack-room
- Swing divider wall with passenger access door
- Vinyl on floor
- Full length hanging robe
- 17’3” Internal length
Tare 2040Kg
GTM 3500Kg
ATM 3500kg
Internal Height 7’3
Internal Width 6’3
Internal Length 17’3
Bay Length – 2450mm
Bay Width – 680mm
Optional Extras
