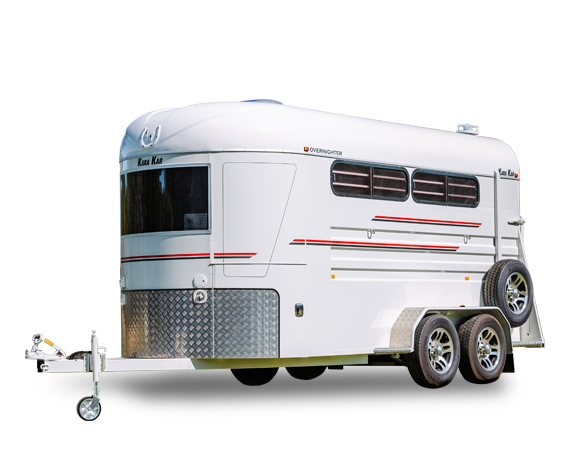

Overnighter

All images for illustration purposes only, may include some optional extras

2 Horse Overnighter 360

The Overnighter 360 comes with a host of modern kitchen appliances with additional features as standard to make your over night camp a breeze.

  • Tare 18400Kg | GTM 2800Kg | ATM 3100Kg
  • Internal Height 7’6” | Internal Width 6’3” | Internal Length 13’6
  • Bay Length – 2450mm | Bay Width – 680mm

Specifications

2 Horse Overnighter 360

Download Floor Plan PDF

  • Super Gal Steel
  • Full fibreglass roof
  • Rubber on floor in horse area & tailgate
  • 4 Wheel 10” electric brakes with breakaway
  • 50mm square 4” drop axles with parallel bearings
  • 5 New 195 light truck tyres
  • Removable dividers, head dividers & slam latches
  • Large polycarbonate front window
  • Low camber Australian made slipper springs
  • Australian made easy lift swing up jockey wheel
  • Spring loaded tailgate latches
  • 2 x Gas strut operated tailgate with rear step
  • Drain holes at rear
  • Full multi volt LED lights
  • Full height personal access door
  • Aluminium bump guard on tailgate
  • 600mm checker plate stone guard around front
  • 950mm front kick-boards
  • 950mm rear kick-boards
  • White colourbond on tailgate
  • Rug rack
  • Caravan door
  • Striping: your colour choice
  • Checker-plate over mudguards
  • Filled in checker plate draw-bar
  • Extra stripe & scroll
  • 2 pac automotive white paint
  • Checker plate mudguard steps
  • 14” 6 stud Alloy wheels
  • 2 Pop up vents
  • 2 Rotary vents
  • 3 lockable sliding windows with screens
  • Full padded divider system
  • Pinch mould on mudguards & roof
  • Lined & insulated fibreglass roof
  • 1 x 240v internal double power point & circuit breaker
  • 1 x 240v external power point
  • 240v to 12v charge unit
  • 12v deep cycle battery and box
  • 12v porch light
  • Overhead cupboard in front
  • 108lt 12v/240v 2way fridge
  • Stainless steel sink, pressured cold water
  • 1 x 86ltr water tank, ext tap, battery & pump
  • Cutlery draw
  • Rear lift door
  • 1 Door tack-room
  • 3 x 12v LED internal lights
  • Caravan style roof vent with blind
  • 12v TV socket with aerial wiring harness

Tare 1840Kg
GTM 2800Kg
ATM 3100kg

Internal Height 7’3
Internal Width 6’3
Internal Length 13’6

Bay Length – 2450mm
Bay Width – 680mm

Optional Extras

Download Options PDF

2 Horse Overnighter 460

Next in the Overnighter series the 460 comes with a host of modern kitchen appliances with additional features including a swing-dividing wall, which can separate the horse area from the cabin.

  • Tare 1860Kg | GTM 2800Kg | ATM 3100Kg
  • Internal Height 7’3” | Internal Width 6’3” | Internal Length 14’6
  • Bay Length – 2450mm | Bay Width – 680mm

Specifications

2 Horse Overnighter 460

Download Floor Plan PDF

  • Super Gal Steel
  • Full fibreglass roof
  • Rubber on floor in horse area & tailgate
  • 4 Wheel 10” electric brakes with breakaway
  • 50mm square 4” drop axles with parallel bearings
  • 5 New 195 light truck tyres
  • Removable dividers, head dividers & slam latches
  • Large polycarbonate front window
  • Low camber Australian made slipper springs
  • Australian made easy lift swing up jockey wheel
  • Spring loaded tailgate latches
  • 2 x Gas strut operated tailgate with rear step
  • Drain holes at rear
  • Full multi volt LED lights
  • Aluminium bump guard on tailgate
  • 600mm checker plate stone guard around front
  • 950mm front kick-boards
  • 950mm rear kick-boards
  • White colourbond on tailgate
  • Open rug rack
  • Lockable flush mounted door handle
  • Striping: your colour choice
  • Checker-plate over mudguards
  • Filled in checker plate draw-bar
  • Extra stripe & scroll
  • Checker plate mudguard steps
  • 14” 6 stud Alloy wheels
  • 2 Pop up vents
  • 2 Rotary vents
  • 2 pac automotive white paint
  • 3 lockable sliding windows with screens
  • Full padded divider system
  • Pinch mould on mudguards & roof
  • Lined & insulated fibreglass roof
  • 1 x 240v internal double power point & circuit breaker
  • 1 x 240v external power point
  • 240v to 12v charge unit
  • 12v deep cycle battery and box
  • 12v porch light
  • Overhead cupboard in front
  • Stainless steel sink, pressured cold water
  • 1 x 86lt water tanks, ext tap, battery & pump
  • Cutlery draw
  • Rear lift door
  • 1 Door tack-room
  • 3 x 12v LED internal lights
  • Caravan style roof vent with blind
  • Caravan style door
  • 108lt 12v/240v 2way fridge

Extra features above 360 model

  • Microwave
  • Swing divider wall with passenger access door
  • Vinyl on floor
  • Full length hanging robe
  • 14’6” Internal length
  • 12v TV socket with aerial wiring harness

Tare 1860Kg
GTM 2800Kg
ATM 3100kg

Internal Height 7’3
Internal Width 6’3
Internal Length 14’6

Bay Length – 2450mm
Bay Width – 680mm

Optional Extras

Download Options PDF

2 Horse Showman

The ultimate 2 Horse Angle Load! The Showman offers the features of a Gooseneck – a fully fitted kitchen, sleeping and dining facilities and shower within the compact convenience of a Drawbar trailer.

  • Tare 1900Kg | GTM 3500Kg | ATM 3500Kg
  • Internal Height 7’3” | Internal Width 6’3” | Internal Length 17’
  • Bay Length – 2450mm | Bay Width – 680mm

Specifications

2 Horse Standard Showman

Download Floor Plan PDF

  • Super Gal Steel
  • Full fibreglass roof
  • Rubber on floor in horse area & tailgate
  • 4 Wheel 12” electric brakes with breakaway
  • 50mm square 3” drop axles
  • Removable dividers, head dividers & slam latches
  • Large polycarbonate front window
  • Low Camber Australian made slipper springs
  • Australian made easy lift swing up jockey wheel
  • Spring loaded tailgate latches
  • 2 x Gas strut operated tailgate with rear step
  • Drain holes at rear
  • Full multi volt LED lights
  • Aluminium bump guard on tailgate
  • 600mm checker plate stone guard around front
  • 950mm front kick-boards front & rear
  • White colourbond on tailgate
  • Open rug rack
  • Lockable flush mounted door handle
  • Striping: your colour choice
  • Checker-plate over mudguards
  • Filled in checker plate draw-bar
  • Extra stripe & scroll
  • Checker plate mudguard steps
  • 2 Interior lights in horse area
  • 2 Pop up vents
  • 2 Rotary vents
  • 3 lockable sliding windows with screens
  • Full padded divider system
  • Pinch mould on mudguards & roof
  • 2 pac automotive white paint
  • Lined & insulated fibreglass roof
  • 1 x 240v internal double power point & circuit breaker
  • 1 x 240v external power point
  • 240v to 12v charge unit
  • 12v deep cycle battery and box
  • 12V porch light
  • Overhead cupboard in front
  • 108lt 12v/240v 2way fridge
  • Stainless steel sink
  • 1 x 86lt water tank, ext tap, battery & pump
  • Cutlery draw
  • Rear lift door
  • 2 x 12v LED internal lights in camper
  • Swing divider wall with passenger access door
  • Roof vent with fly-screen & blind
  • Vinyl on floor
  • Caravan style door
  • Lined & insulated ply walls
  • Kitchen window with blind & screen
  • Overhead kitchen cupboards
  • Curved lounge with fold down table/bed & storage
  • 16” 6 stud Alloy wheels
  • 240v hot-water shower with mains pressure hook up
  • Cold/hot water flick mixer at sink
  • 3 Saddle swing out tack box
  • Light weight timber kitchen
  • 19mm Composite floor & tailgate

Tare 1900Kg
GTM 3500Kg
ATM 3500kg

Internal Height 7’3
Internal Width 6’3
Internal Length 17’

Bay Length – 2450mm
Bay Width – 680mm

Optional Extras

Download Options PDF

2 Horse Showman Endurance

The ultimate 2 Horse Angle Load! The 2 Horse Showman Endurance is jam packed with smart innovative features so you can enjoy all the comforts of home. A huge front tack room, fridge, 12v & 240v power, caravan window and lined and insulated roof all come as standard. Another innovative feature that is built into your Showman Endurance is having the dinette table height being adjustable, lowering to the level of the seats to form an extra bed.

  • Tare 1900Kg | GTM 3500Kg | ATM 3500Kg
  • Internal Height 7’3” | Internal Width 6’3” | Internal Length 17’
  • Bay Length – 2450mm | Bay Width – 680mm

Specifications

2 Horse Showman Endurance

Download Floor Plan PDF

  • Super Gal Steel
  • Full fibreglass roof
  • Rubber on floor in horse area & tailgate
  • 4 Wheel 12” electric brakes with breakaway
  • 50mm square 3” drop axles
  • Removable dividers, head dividers & slam latches
  • Large polycarbonate front window
  • Low Camber Australian made slipper springs
  • Australian made easy lift swing up jockey wheel
  • Spring loaded tailgate latches
  • 2 x Gas strut operated tailgate with rear step
  • Drain holes at rear
  • Full multi volt LED lights
  • Aluminium bump guard on tailgate
  • 600mm checker plate stone guard around front
  • 950mm front kick-boards front & rear
  • White colourbond on tailgate
  • Open rug rack
  • Lockable flush mounted door handle
  • Striping: your colour choice
  • Checker-plate over mudguards
  • Filled in checker plate draw-bar
  • Extra stripe & scroll
  • Checker plate mudguard steps
  • 2 Interior lights in horse area
  • 2 Pop up vents
  • 2 Rotary vents
  • 3 lockable sliding windows with screens
  • Full padded divider system
  • Pinch mould on mudguards & roof
  • 2 pac automotive white paint
  • Lined & insulated fibreglass roof
  • 1 x 240v internal double power point & circuit breaker
  • 1 x 240v external power point
  • 240v to 12v charge unit
  • 12v deep cycle battery and box
  • 12V porch light
  • Overhead cupboard in front
  • 108lt 12v/240v 2way fridge
  • Stainless steel sink
  • 1 x 86lt water tank, ext tap, battery & pump
  • Cutlery draw
  • Rear lift door
  • 2 x 12v LED internal lights in camper
  • Swing divider wall with passenger access door
  • Roof vent with fly-screen & blind
  • Vinyl on floor
  • Caravan style door
  • Lined & insulated ply walls
  • Kitchen window with blind & screen
  • Overhead kitchen cupboards
  • Curved lounge with fold down table/bed & storage
  • 16” 6 stud Alloy wheels
  • 240v hot-water shower with mains pressure hook up
  • Cold/hot water flick mixer at sink
  • 3 Saddle swing out tack box
  • Light weight timber kitchen
  • 19mm Composite floor & tailgate
  • Dividing wall
  • Shower in back corner
  • Dinette / overhead bunk
  • Fitted kitchen

Tare 1900Kg
GTM 3500Kg
ATM 3500kg

Internal Height 7’3
Internal Width 6’3
Internal Length 17’

Bay Length – 2450mm
Bay Width – 680mm

Optional Extras

Download Options PDF

3 Horse Overnighter 700

The Overnighter 700 comes with a host of modern kitchen appliances and cupboards plus additional features as standard to make your over night camp a breeze.

  • Tare 2020Kg | GTM 3500Kg | ATM 3500Kg
  • Internal Height 7’3” | Internal Width 6’3” | Internal Length 16’9
  • Bay Length – 2450mm | Bay Width – 680mm

Specifications

3 Horse Overnighter 700

Download Floor Plan PDF

  • Super Gal Steel
  • 19mm Composite floor and tailgate
  • Full fibreglass roof
  • Rubber on floor in horse area & tailgate
  • 4 Wheel 12” electric brakes with breakaway
  • 50mm square 3” drop axles
  • 5 New 225 light truck tyres
  • Removable dividers, head dividers & slam latches
  • Large polycarbonate front window
  • Low Camber Australian made slipper springs
  • Australian made easy lift swing up jockey wheel
  • Spring loaded tailgate latches
  • 2 x Gas strut operated tailgate with rear step
  • Drain holes at rear
  • Full multi volt LED lights
  • Full height personal access door
  • Aluminium bump guard on tailgate
  • 600mm checker plate stone guard around front
  • 950mm front kick-boards
  • 950mm rear kick-boards
  • White colourbond on tailgate
  • Open rug rack
  • Lockable flush mounted door handle on tack box
  • Striping: your colour choice
  • Checker-plate over mudguards
  • Filled in checker plate draw-bar
  • Extra stripe & scroll
  • Checker plate mudguard steps
  • 2 pac automotive white paint
  • 16” 6 stud Alloy wheels
  • 2 Pop up vents
  • 2 Rotary vents
  • 3 lockable sliding windows with screens
  • Rear lift door
  • Full padded divider system
  • Pinch mould on mudguards & roof
  • Lined & insulated fibreglass roof
  • 1 x 240v internal double power point & circuit breaker
  • 1 x 240v external power point
  • 240v to 12v charge unit
  • 12v deep cycle battery and box
  • 12v porch light
  • Overhead cupboards in front
  • 108lt 12v/240v 2way fridge
  • Microwave
  • Stainless steel sink, pressured cold water
  • 1 x 86lt water tank, ext tap, battery & pump
  • Cutlery draw
  • 2 Door tack-room
  • 3 x 12v LED internal lights
  • Caravan style door
  • Caravan style roof vent with blind
  • 12v TV socket with aerial wiring harness

Tare 2020Kg
GTM 3500Kg
ATM 3500kg

Internal Height 7’3
Internal Width 6’3
Internal Length 16’9

Bay Length – 2450mm
Bay Width – 680mm

Optional Extras

Download Options PDF

3 Horse Overnighter 800

The largest of the Overnighter series the 800 comes with a host of modern kitchen appliances with additional features including a swing-dividing wall, which can separate the horse area from the cabin.

  • Tare 2040Kg | GTM 3500Kg | ATM 3500Kg
  • Internal Height 7’3” | Internal Width 6’3” | Internal Length 17’3
  • Bay Length – 2450mm | Bay Width – 680mm

Specifications

3 Horse Overnighter 800

Download Floor Plan PDF

  • Super Gal Steel
  • 19mm Composite floor and tailgate
  • Full fibreglass roof
  • Rubber on floor in horse area & tailgate
  • 4 Wheel 12” electric brakes with breakaway
  • 50mm square 3” drop axles
  • 5 New 225 light truck tyres
  • Removable dividers, head dividers & slam latches
  • Large polycarbonate front window
  • Low Camber Australian made slipper springs
  • Australian made easy lift swing up jockey wheel
  • Spring loaded tailgate latches
  • 2 x Gas strut operated tailgate with rear step
  • Drain holes at rear
  • Full multi volt LED lights
  • Full height personal access door
  • Aluminium bump guard on tailgate
  • 600mm checker plate stone guard around front
  • 950mm front kick-boards
  • 950mm rear kick-boards
  • White colourbond on tailgate
  • Open rug rack
  • Lockable flush mounted door handle
  • Striping: your colour choice
  • Checker-plate over mudguards
  • Filled in checker plate draw-bar
  • Extra stripe & scroll
  • Checker plate mudguard steps
  • 16” 6 stud Alloy wheels
  • 2 Pop up vents
  • 12v TV socket with aerial wiring harness
  • 2 Rotary vents
  • 2 pac automotive white paint
  • 3 lockable sliding windows with screens
  • Rear lift door
  • Full padded divider system
  • Pinch mould on mudguards & roof
  • Lined & insulated fibreglass roof
  • 1 x 240v internal double power point & circuit breaker
  • 1 x 240v external power point
  • 3 x 12v internal lights
  • 240v to 12v charge unit
  • 12v deep cycle battery and box
  • Roof vent with fly-screen & blind
  • 12v porch light
  • Overhead cupboard in front
  • Stainless steel sink, pressured cold water
  • 1 x 86lt water tanks, ext tap, battery & pump
  • Cutlery draw
  • Caravan style door
  • 108lt 12v/240v 2way fridge
  • Microwave

Extra Features above 700 model

  • 1 Door tack-room
  • Swing divider wall with passenger access door
  • Vinyl on floor
  • Full length hanging robe
  • 17’3” Internal length

Tare 2040Kg
GTM 3500Kg
ATM 3500kg

Internal Height 7’3
Internal Width 6’3
Internal Length 17’3

Bay Length – 2450mm
Bay Width – 680mm

Optional Extras

Download Options PDF
